ORL2737-SS-LED-3000K
Mini Designer Low Level Inset Fixture
Low Level
CATEGORYDecorative
PRODUCT RANGEORL2737
COLORStainless Steel
Mini recessed wall fixture featuring Aluminium construction and integrated LED chipset. Small product footprint ensures discreet application with downward lighting effect. A CRI value > Ra 80 light quality assurance. Available in a number of finishes and driver configurations for chosen dimming protocol. Please Note: This product does not support hot plugging.
Construction
InstallationWALL RECESSED
ConstructionALUMINIUM
Length40 MM
Width / Depth19 MM
Height40 MM
Cutout35 X 35 MM
Weight0.02KG
FinishSTAINLESS STEEL
IP RatingIP20
Optical Performance
Wattage1W
Lumen Output135LM
Efficacy135LM/W
CCT3000K
CRICRI > 80
ChipsetLED 2835 CHIPSET
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage3V
Milliamp / Current350MA
Driver ConfigurationREMOTE

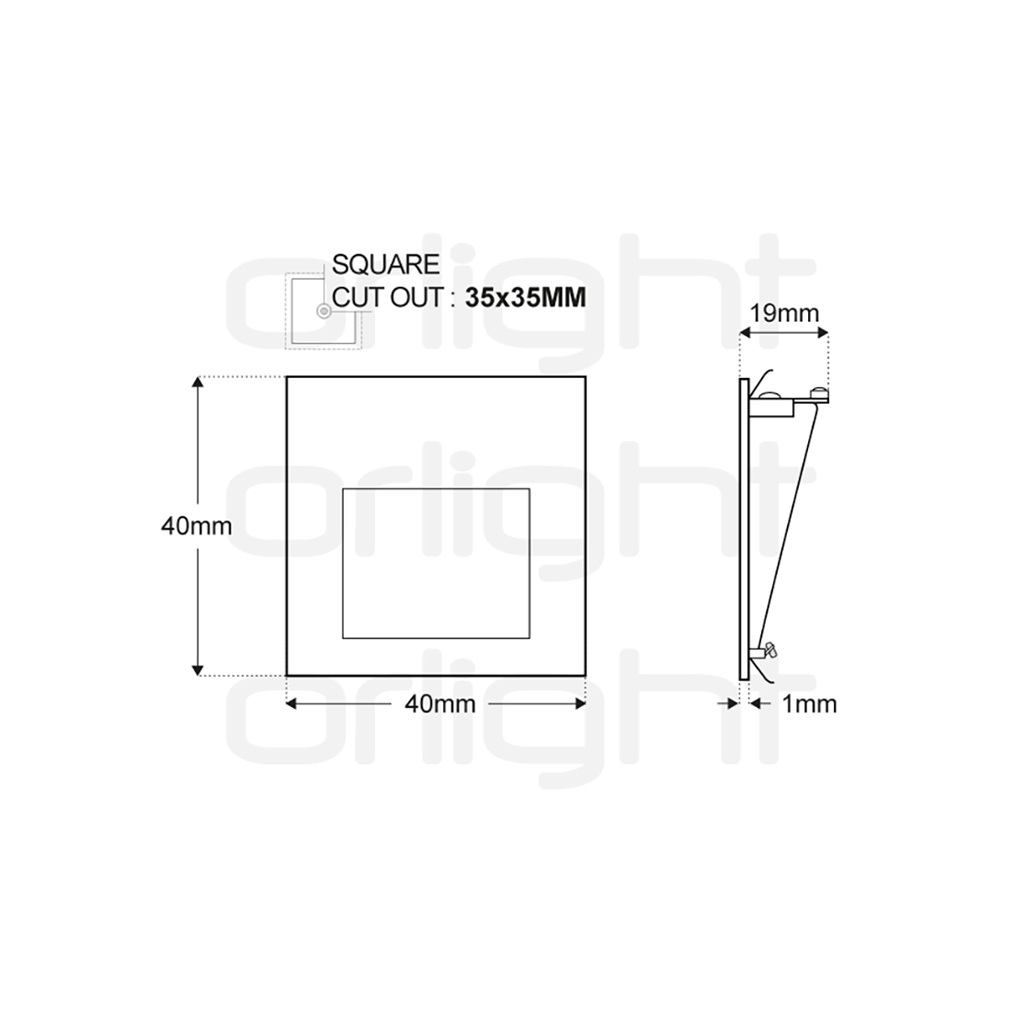

Dimensions
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15231 | ORLRPV350CC | Switched [IP68] | 1 | 8 | |
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 10 | 30 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 10 | 30 | |
| 46595 | ORLRPV20D-350MA | Mains [IP20] | 1 | 13 | |
| 22251 | MAXDR-MINI-350MA | 1-10V/Push [IP20] | 1 | 15 | |
| 34715 | ORL-DALI-NFC-15CC-350MA | DALI [IP20] | 2 | 13 |
