ORL2734-FL-IP65-AL-2700K
Midi Designer Low Level Inset Fixture
Low Level
CATEGORYDecorative
PRODUCT RANGEORL2734-FL
COLORBrushed Aluminium
Designer recessed wall fixture with Matt White, Matt Black or Aluminium Finish. Internal reflector creates downward lighting effect. Performance criteria demonstrated in conjunction with CREE X-PE2 LED Chipset. Metal mounting back box accessory available for external applications. (ORL-2734-FL-BACKBOX). Please Note: This product does not support hot plugging.
Construction
InstallationWALL RECESSED
ConstructionALUMINIUM
Length90 MM
Width / Depth38 MM
Height90 MM
Cutout80 X 80 MM
Weight0.537KG
FinishBRUSHED ALUMINIUM
IP RatingIP65
Optical Performance
Wattage4W
Lumen Output99LM
Efficacy25LM/W
CCT2700K
CRICRI > 80
ChipsetCREE XPE2
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage9V
Milliamp / Current350MA
Driver ConfigurationREMOTE

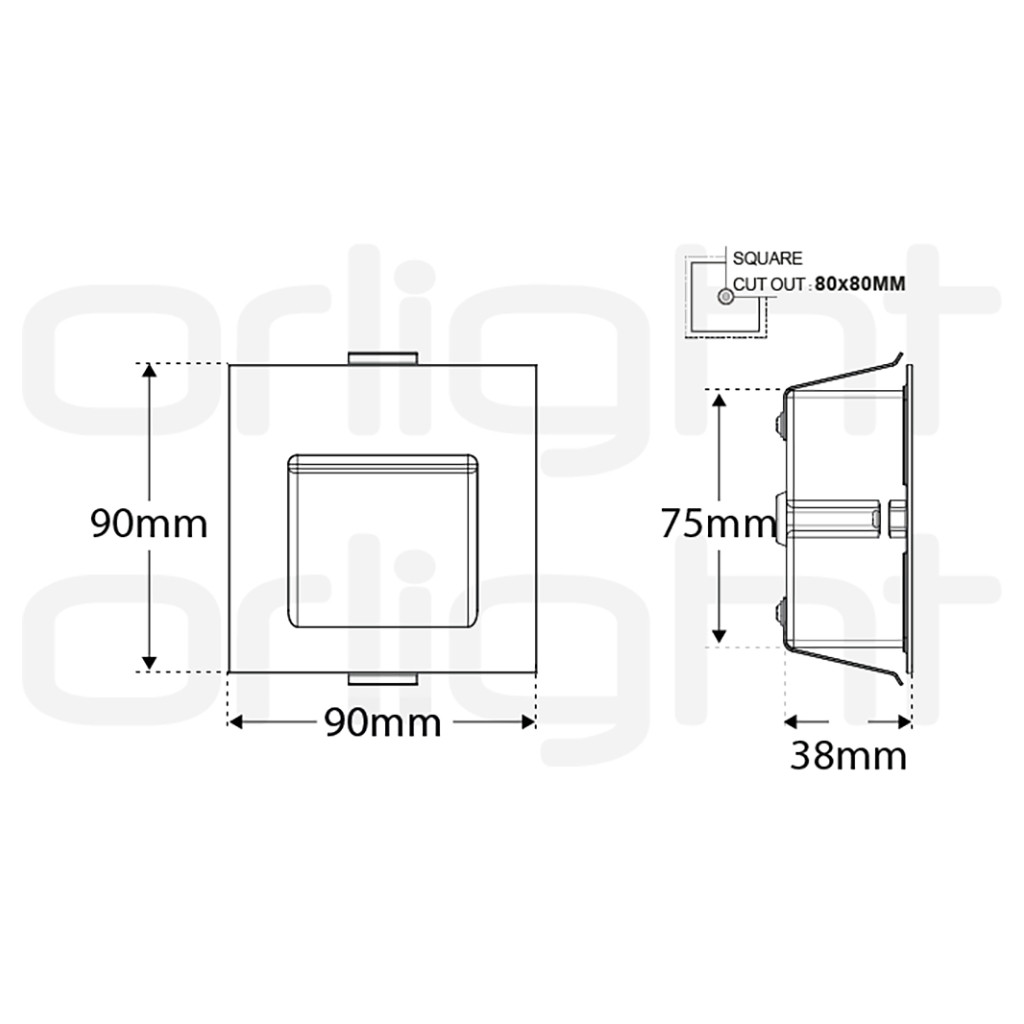

Dimensions

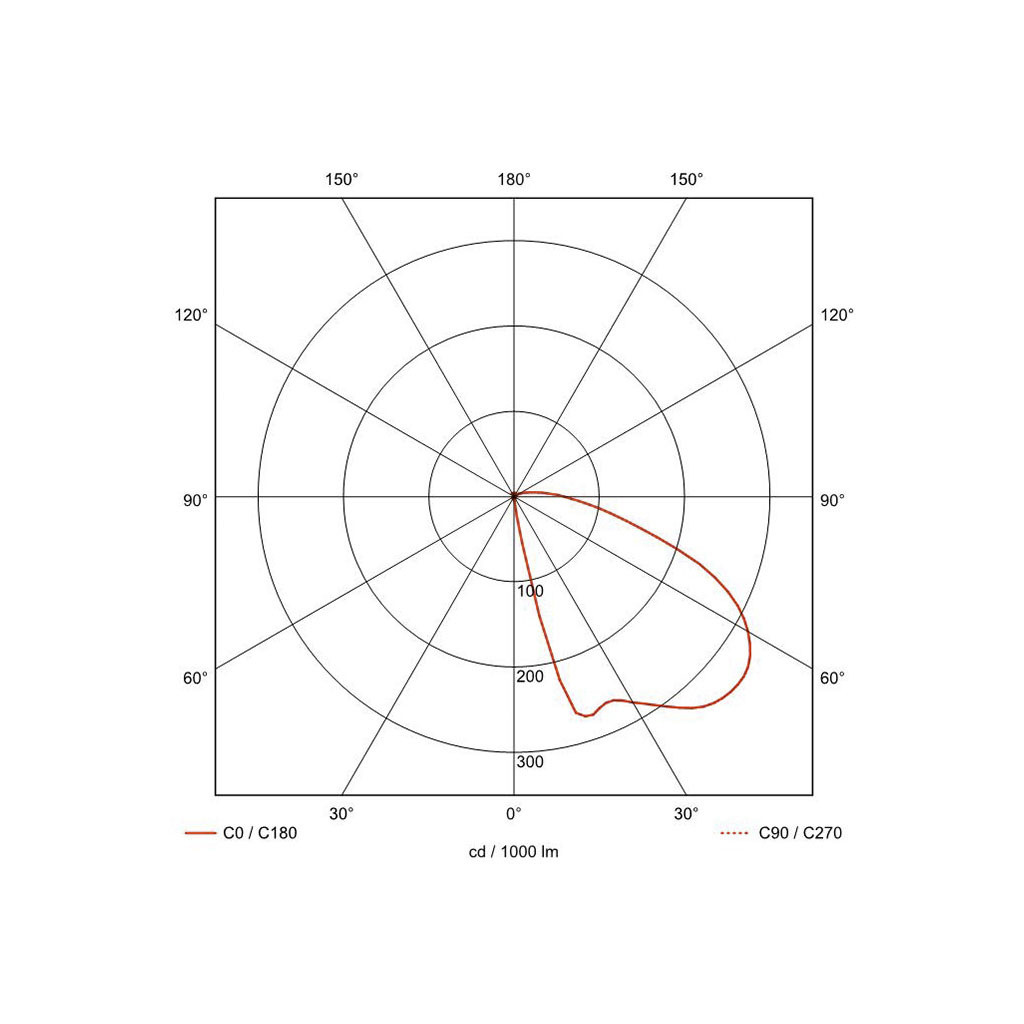

Light Distribution
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15231 | ORLRPV350CC | Switched [IP68] | 1 | 3 | |
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 4 | 10 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 4 | 10 | |
| 46595 | ORLRPV20D-350MA | Mains [IP20] | 1 | 4 | |
| 22251 | MAXDR-MINI-350MA | 1-10V/Push [IP20] | 1 | 5 | |
| 34715 | ORL-DALI-NFC-15CC-350MA | DALI [IP20] | 1 | 4 |
