ACCESSORIES
ISOLINE

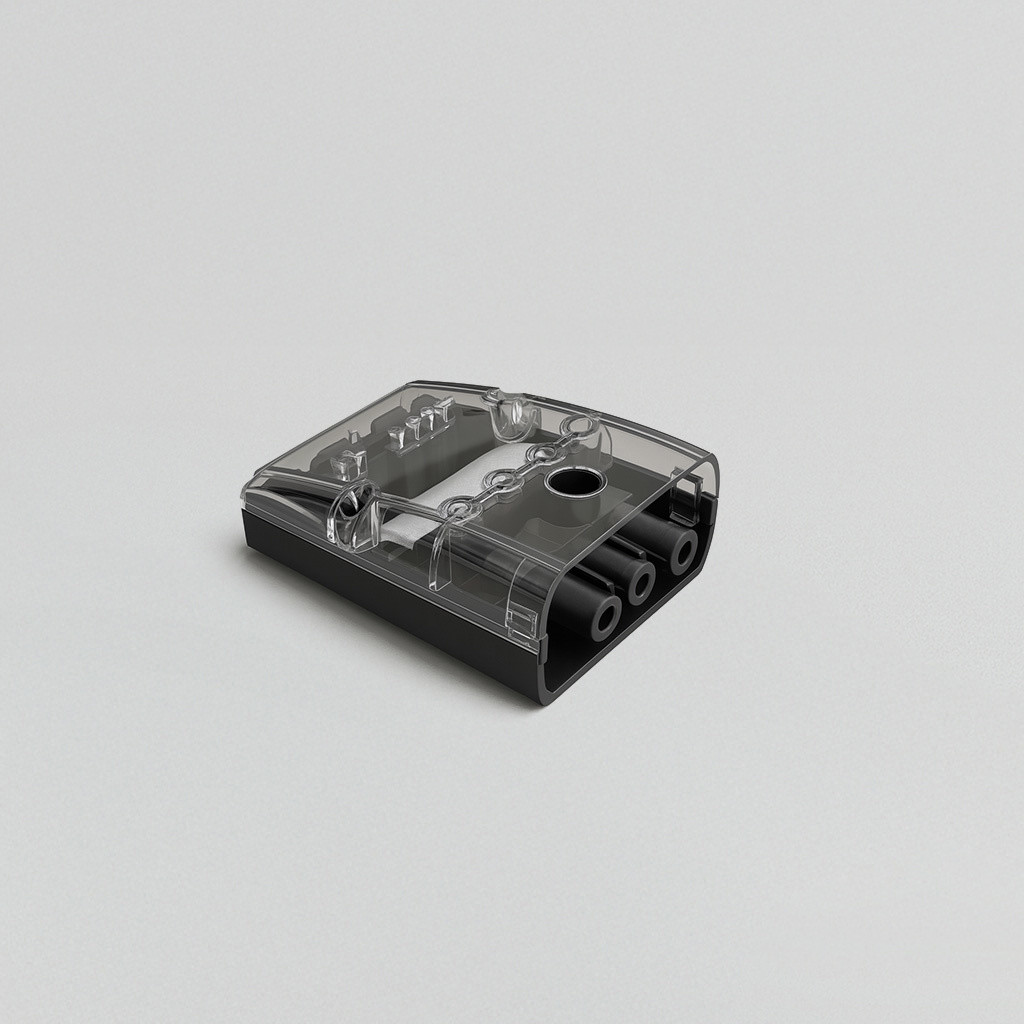

Male and Female Connector
The ISOLINE family is a modular connector range designed to provide safe, quick and straightforward connections between luminaires, emergency components and the power supply during installation and maintenance. Available in 3-pin male, female and Wireline configurations, alongside 4-pin male and female options, the range supports both standard and emergency lighting applications.
The 4-pin variants incorporate an additional permanent feed for emergency circuits. Rated to IP20, each connector features a black nylon base with a clear polycarbonate cover, allowing easy visual inspection of cable connections.
Range Specifications
InstallationFEMALE FEED / MALE FEED
FinishBLACK
Length110 MM
3 PIN FEMALE
3 Pin Female Connector
IP20

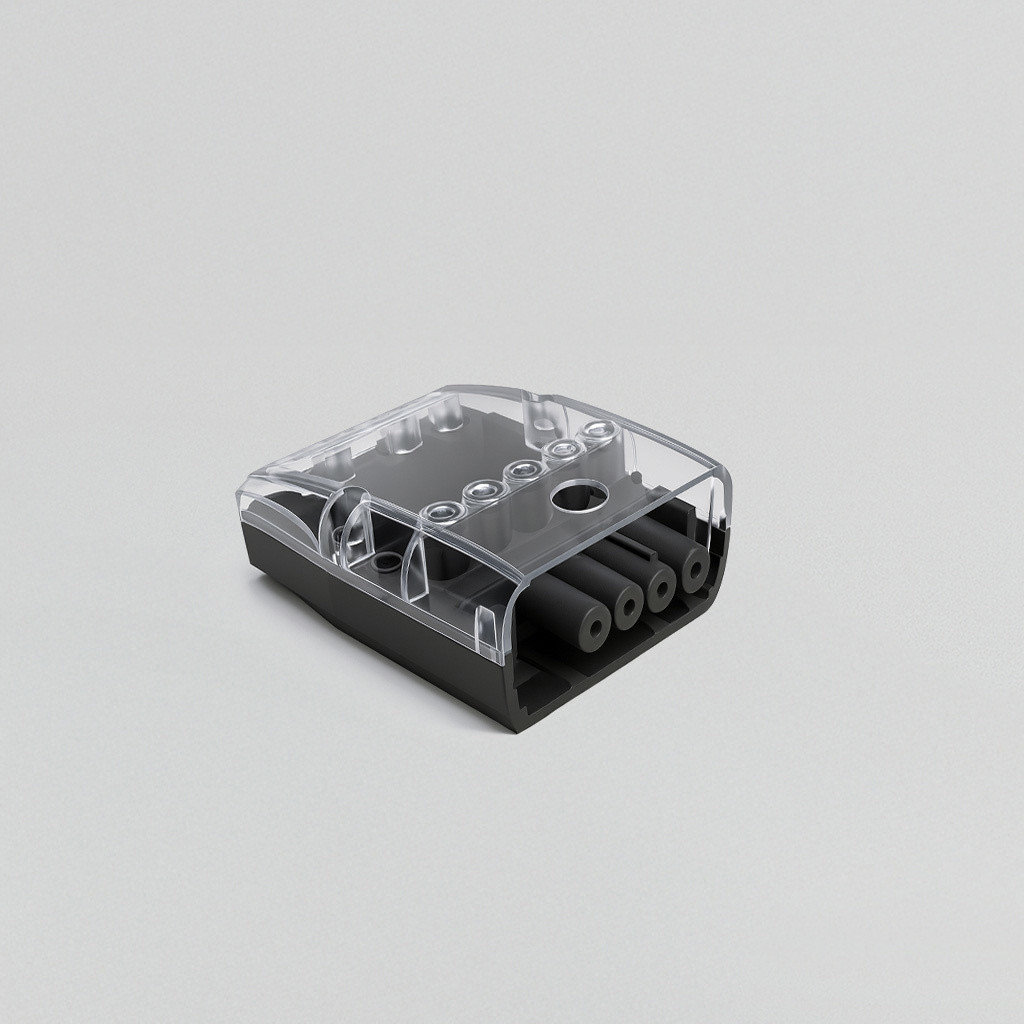

4 PIN FEMALE
4 Pin Female Connector
IP20

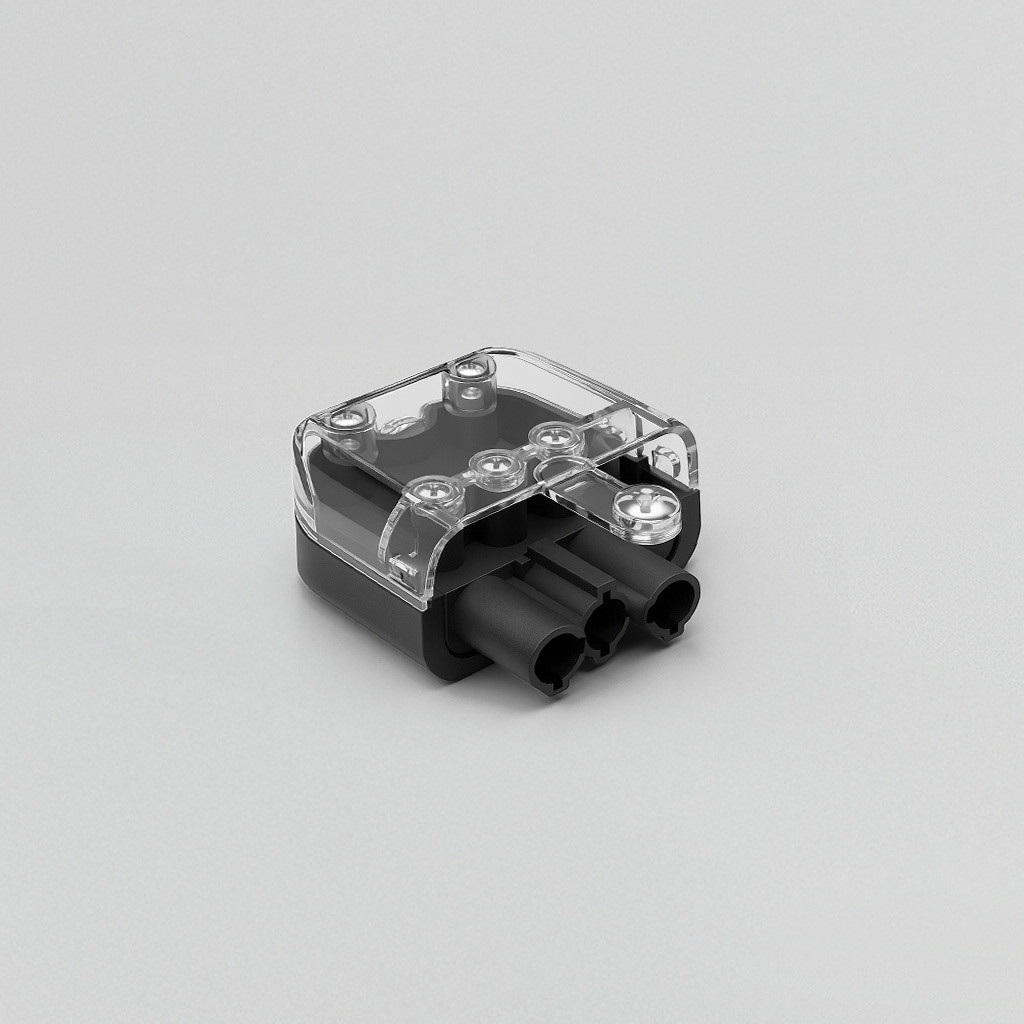

3 PIN MALE
3 Pin Male Connector
IP20

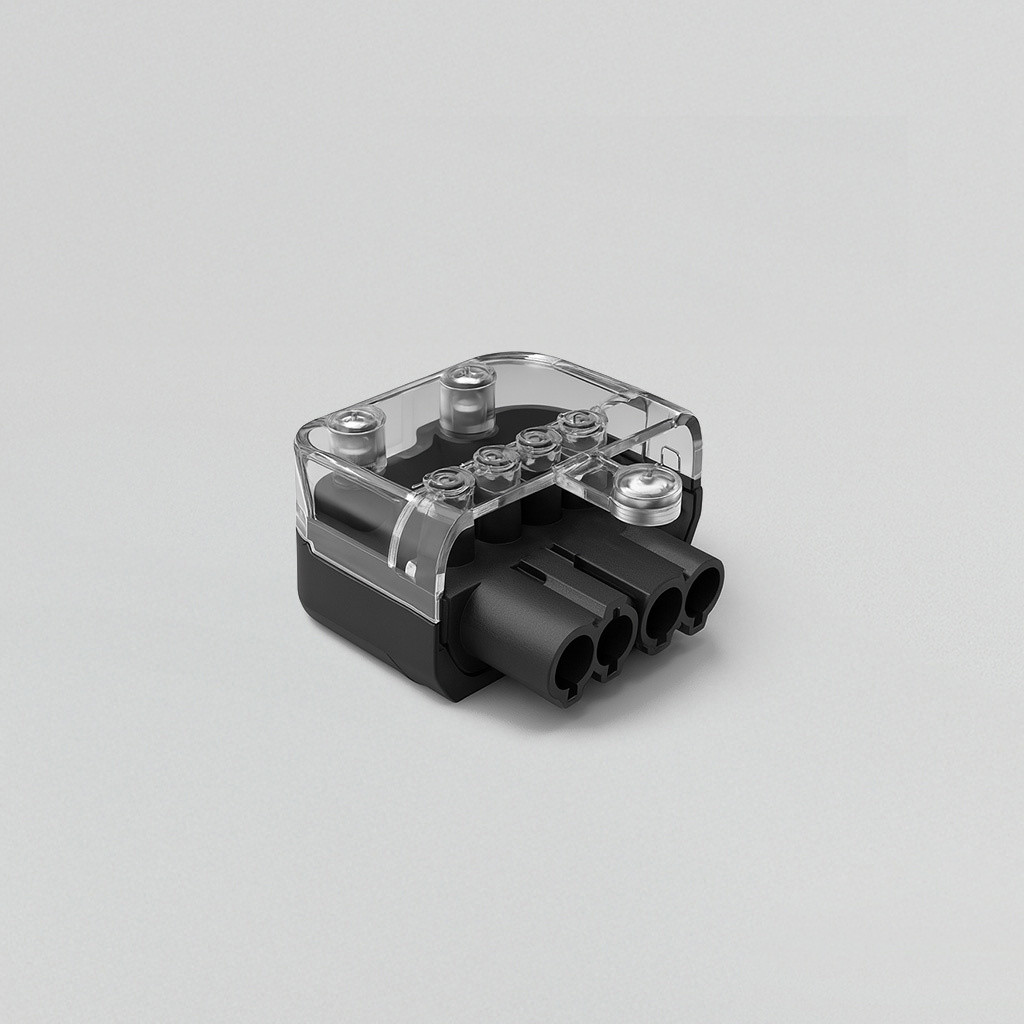

4 PIN MALE
4 Pin Male Connector
IP20

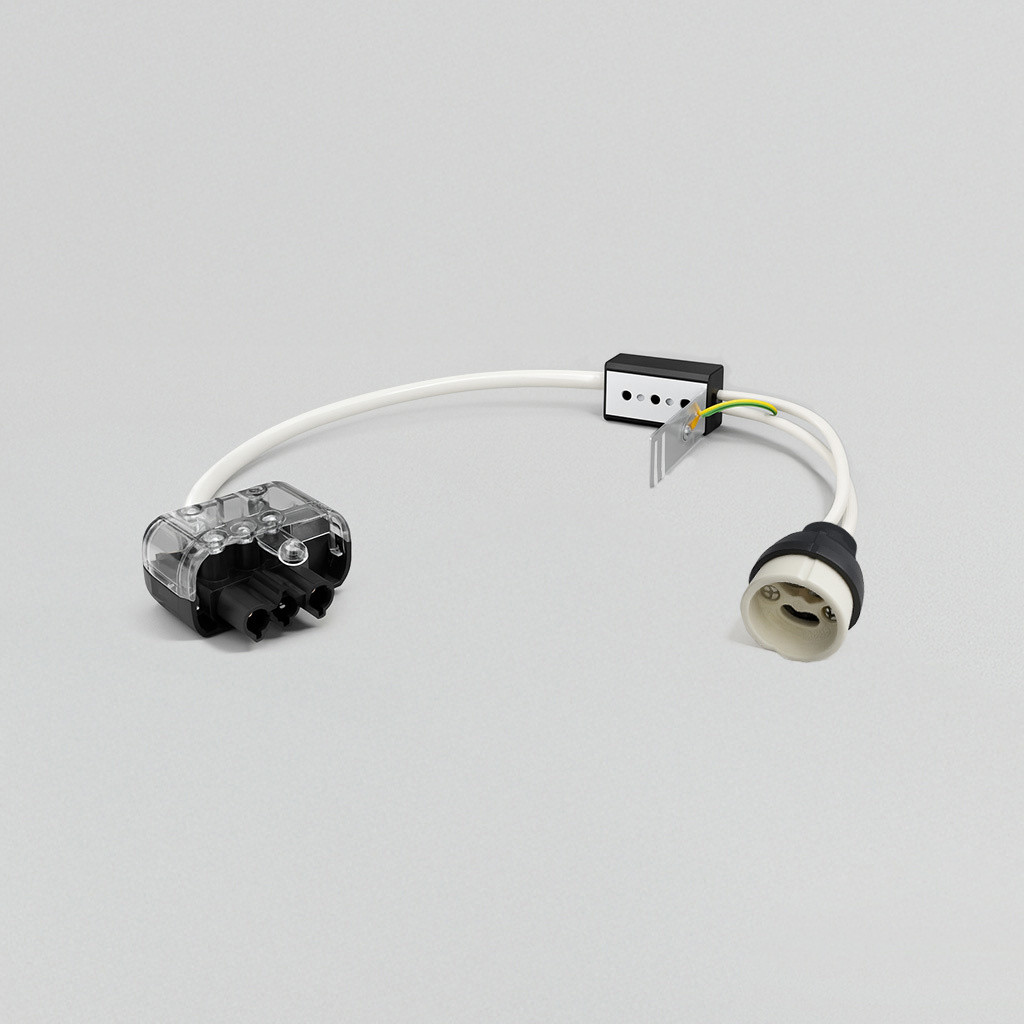

3 PIN MALE WL
3 Pin Male Wire Line Connector
IP20
3 Pin Female Connector
Product CodeFinishIP RatingInstallationDownloads
